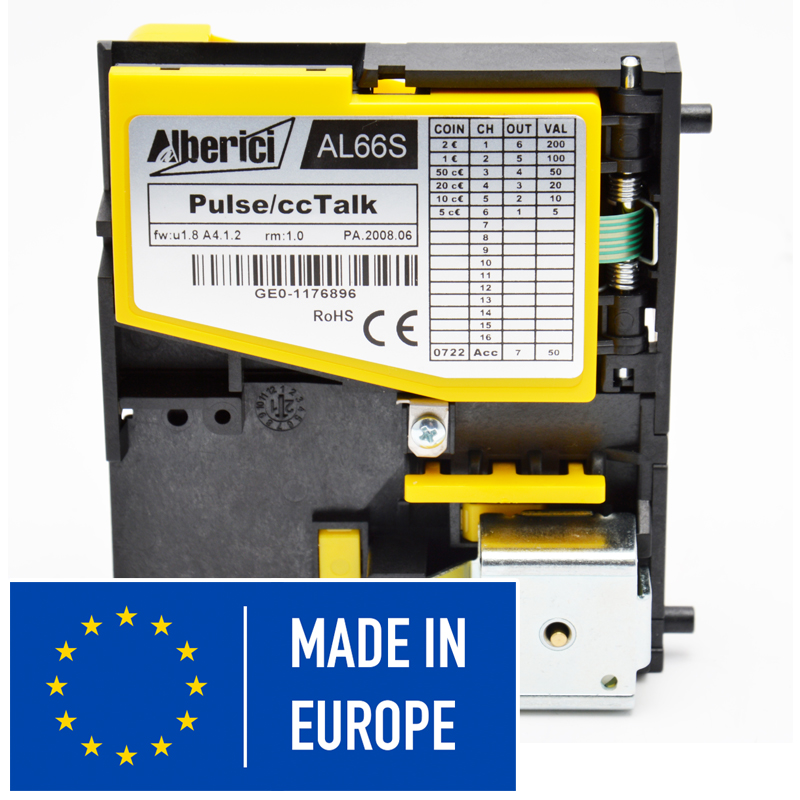

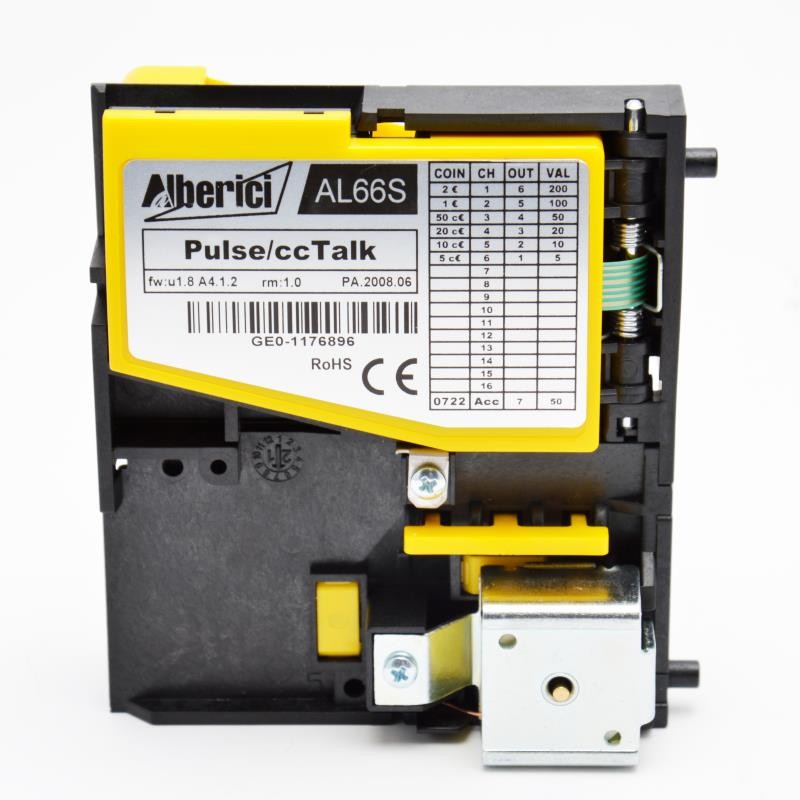

Electronic coin selector AL66S Version S
AL66 electronic coin selector has been designed with a specific architecture devoted to ccTalk serial protocol, and likewise efficient when provided in any among the several programmable standard modes.
6 magnetic sensors and 1 optic detector assure extreme accuracy in coin discrimination. In addition 3 sequential optic pairs and 3 mechanical devices (wire-cutter and thread ripper) protect against fishing, frauds and tamper.
AL66 is suitable for all machines in amusement industry, as well as self-service stations such as automatic distributors of products and services.
Advanced identification technology: 6 magnetic sensors and 1 optical detector
High security level: 3 sequential optic pairs and 3 mechanical devices (wire-cutter and thread-ripper) to protect against fishing, frauds and tampers
Available interface: ccTalk, Aes 256 DH, Aes 2048 DH and Standard

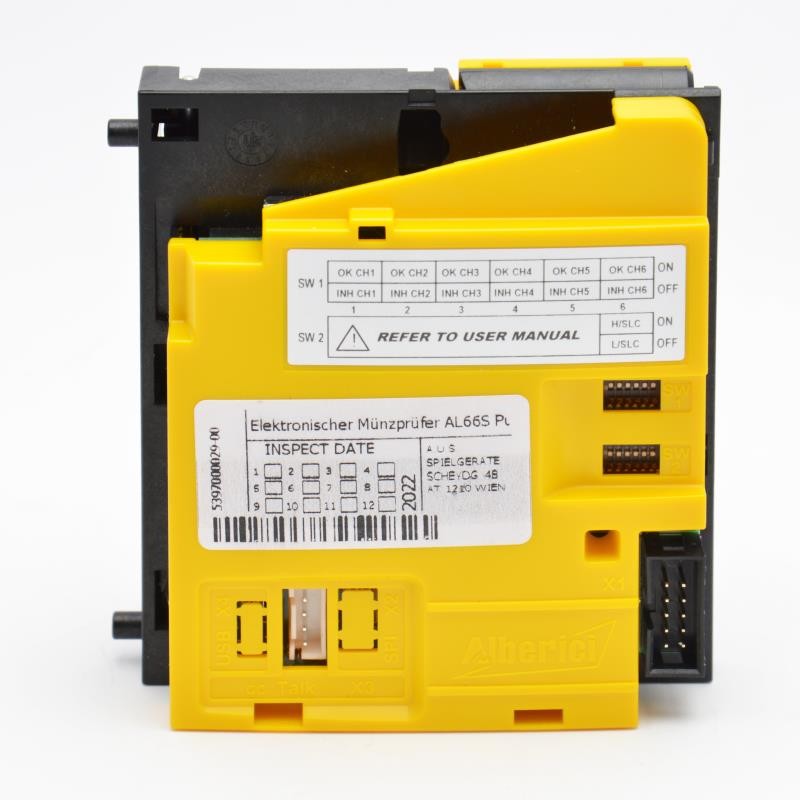

Programming by two dip-switch rows, or by Kit for PC
16 programming channels can ensure extraordinary versatility
8 bit micro controller, 36KB Flash memory, “automotive” features, reliable in the most critical environments
Low power circuits produce low power consumption
Options:
Coin funnels
“C” shaped support
Spanish NU support
Front coin slots
Vertical coin slots
Adapter boards for electronic coin selectors
Coin selector Programming Kit
Universal programming Kit
Tropicalization
TECHNICAL SPECIFICATIONS

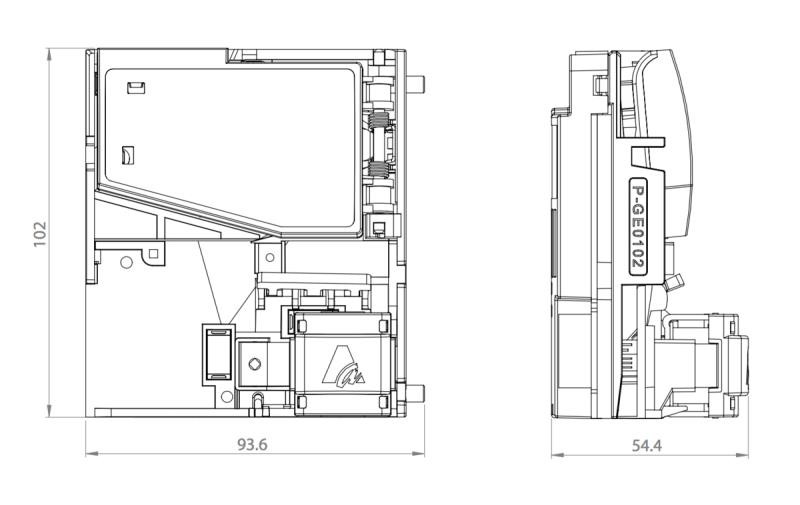

Size (l x h x d) 88 x 102 x 54 mm = 3½ “
Weight 220 gr
Power Supply 12V/24 Vdc (min 8Vdc - max 28 Vdc)
Standby current draw 25 mA
Power save curent draw 5 mA
Acceptance current draw max 350 mA (30ms)
Operating temperature 0°C ÷ 60°C
(Humidity: 75% Standard 95% Tropicalized)

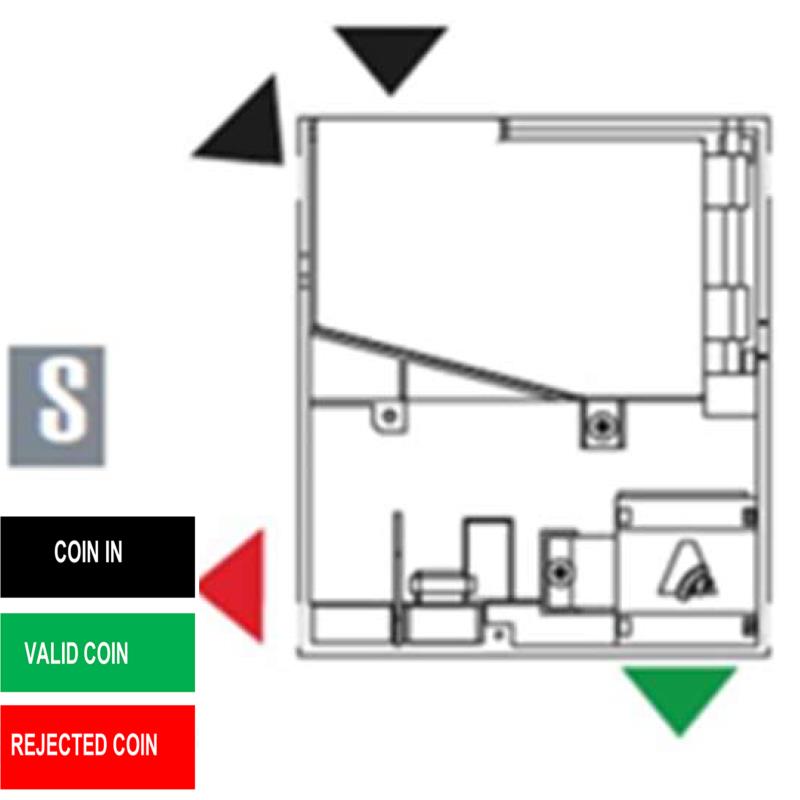

Mechanical versions V, K, S, I
Channels available 16 Coins diameter 16 ÷ 32 mm
Coins thickness 1 ÷ 3,4 mm
Processing speed 3 coins/sec (V)
(without coin sorter) 4 coins/sec (K, S, I)
Interface ccTalk - ccTalk crypto AES DH 256/2048 - Standard impulsive
Connector ccTalk 4 pins, IDC parallel 10 pins, display 6 pins
Outputs Max 250 mA/50V (OC, active low)
Inputs: Active high 3 Vdc/50 Vdc
