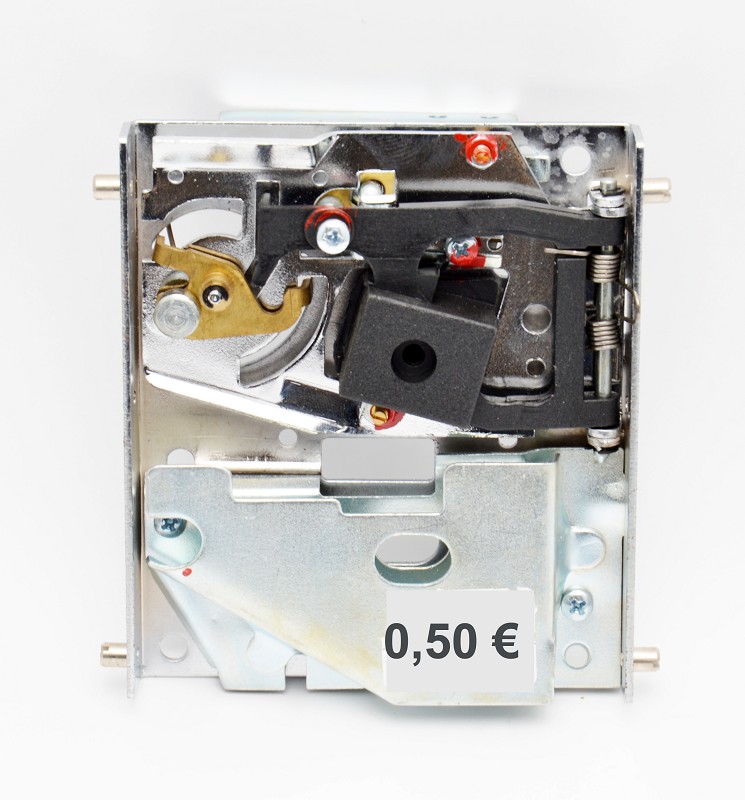

Mechanical coin mechanism B10 0,50 Euro

The fixing points, designed according to international standards, ensure ease of application also on operating machines. Selector of one coin/token measured according to their dimensions. The acceptance channel is entirely openable for cleaning and maintenance.
General characteristics
Easily applicable also on operating machines, thanks to its fixing points designed according to international standards.The acceptance channel is entirely openable for easier cleaning and maintenance.It selects one token or one coin according to ø, weight and thick-ness. Provided with 7 standard controls: 5 size controls, 1 weight control and 1 magnetic density control through magnetic field.

Technical characteristics:

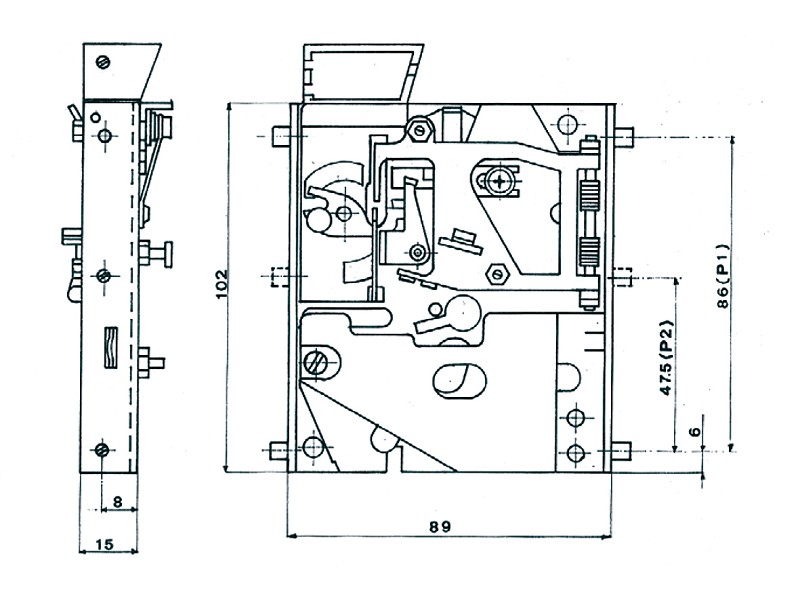

Dimensions (lxhxw) (mm) 89 x 102 x 15
Accepted 1 token or 1 coin ø token/coin (mm) min 17- max 32
Assembly on front plate (the coin mechanism cannot work with inclined axes)
