Description

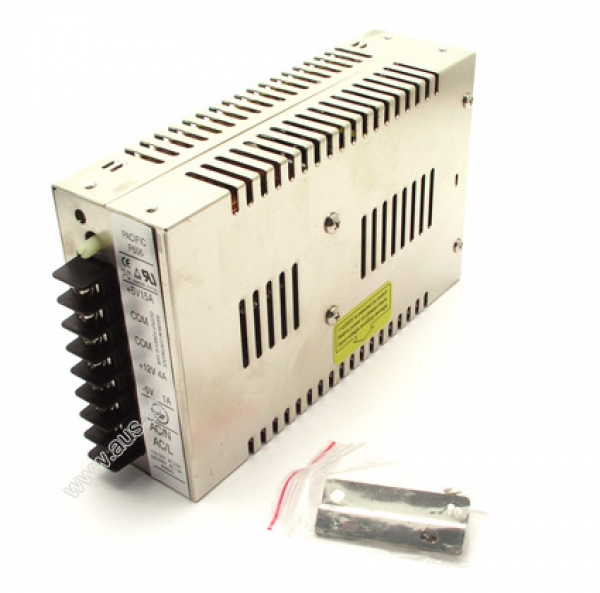

Switching Power Supply +5 V/15A +12 V/4A -5 V/1A

Features:
Industry standard. CE,TUV and UL approved. High efficiency. Easy start up. Green power on LED. Overload protected. Built in EMI filter. Maximum noise minimization by built inhigh speed diode. E105°C Cpacitor Short Circuit & Overload Protection 100% Full Load Burn-In test CE-UL and TUV approved

Scoop of supply:
Mounting bracket

Hint:
This power suplly required a minimun load of 2 amp on the 5 Volt to supply the correct output on the 12 Volt and -5 Volt

Technical details:
AC input 88-132VAC or 176-264VAC (switchable).
DC Output: + 5 Volt 3~15 Amp. Max. +12 Volt 4 Amp. Max. -5 Volt 1 Amp. Max.

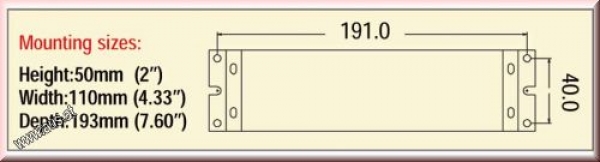

Dimension:
Weight 0.8kg / 20 pieces in a box
DxHxW 194 x 109 x 50 (56 with bracket)
