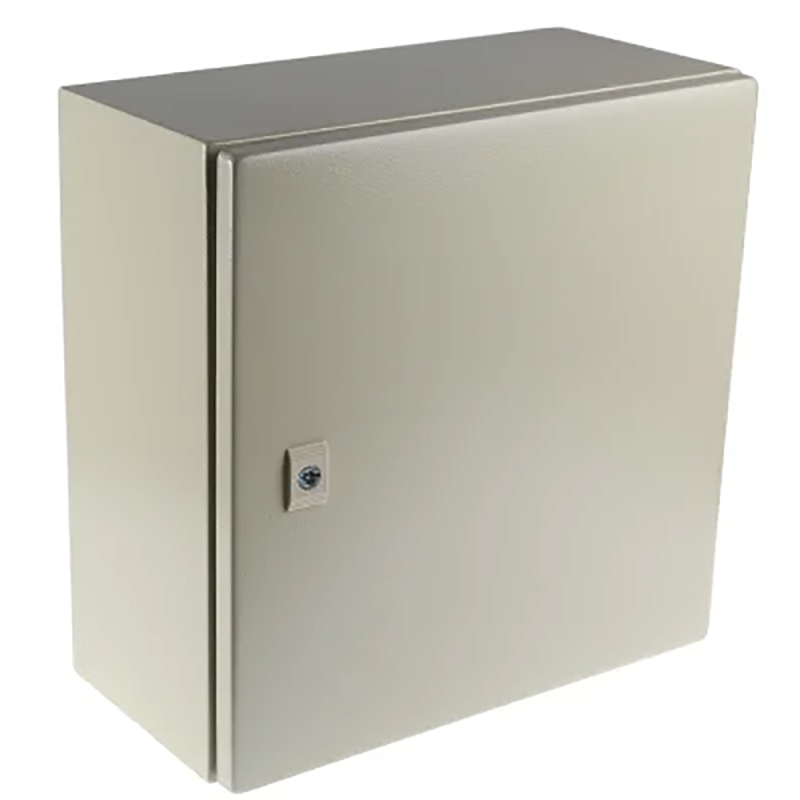

PRO steel wall housing RAL 7032 IP66 400mm x 400mm x 200mm
Ideal for small series and prototype construction to protect circuit boards and controls.
With IP66 ingress protection, this model is fully protected against dust that can damage sensitive equipment. Dirt or small particles cannot enter the sealed housing. The excellent protection class also ensures good water resistance and resistance to high-pressure water jets.
- Steel structure coated with epoxy polyester powder
- Protection class IP66 - Housing and door made of sheet steel
- Completely wall mountable
- Pebble gray finish
Technical specifications
property value
Height outside 400 mm
Width outside 400 mm
External depth 200mm
Case material steel
Degree of protection IP66
Chassis plate Yes
Door lock type Simple locking system
Gland Plate Yes
Color RAL 7032
Fastening kit yes
Inside Mount Type Panel A
Application Electrics, electronics, industry
Outboard Mount Type Bracket B
Special features IK10 against mechanical shocks
Standards Met RoHS Compliant
With IP66 ingress protection, this model is fully protected against dust that can damage sensitive equipment. Dirt or small particles cannot enter the sealed housing. The excellent protection class also ensures good water resistance and resistance to high-pressure water jets.
